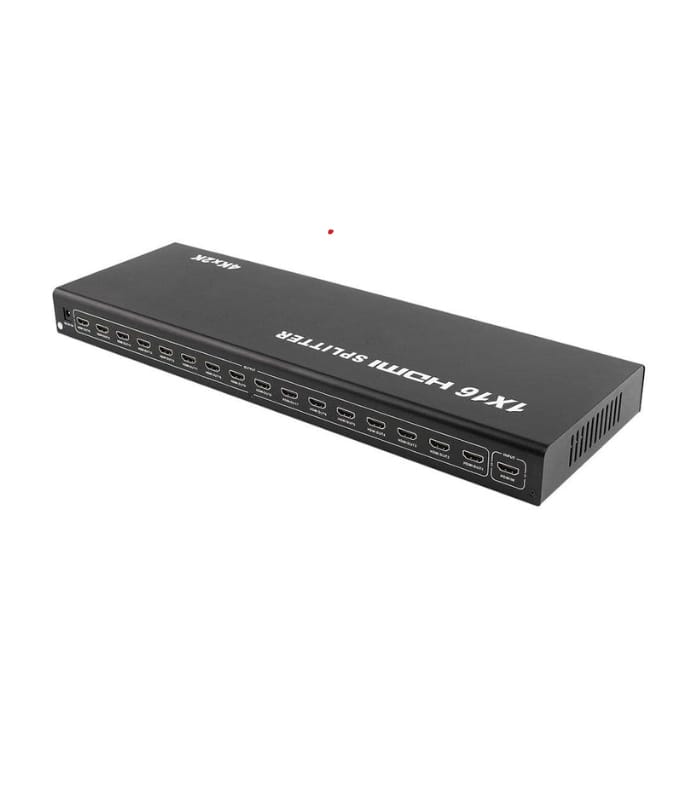

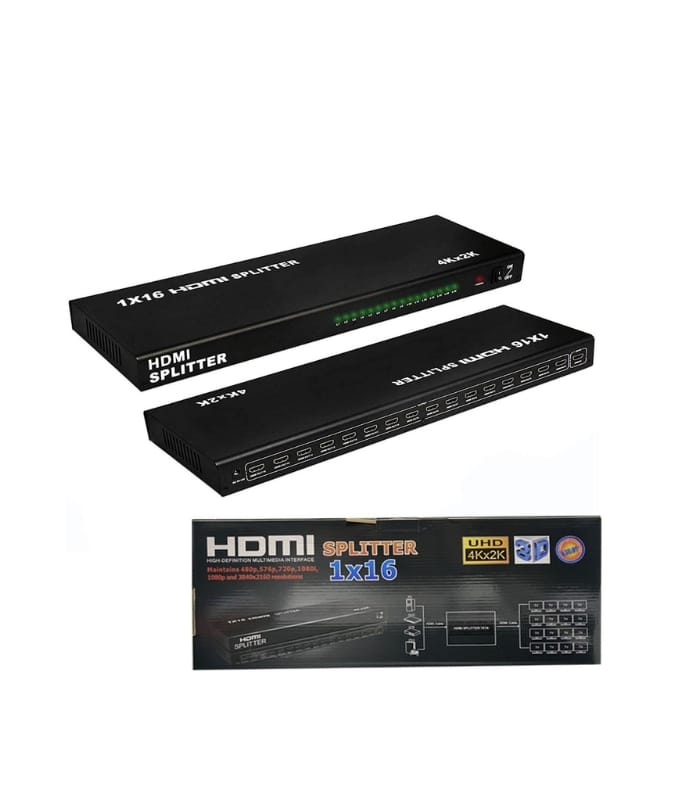

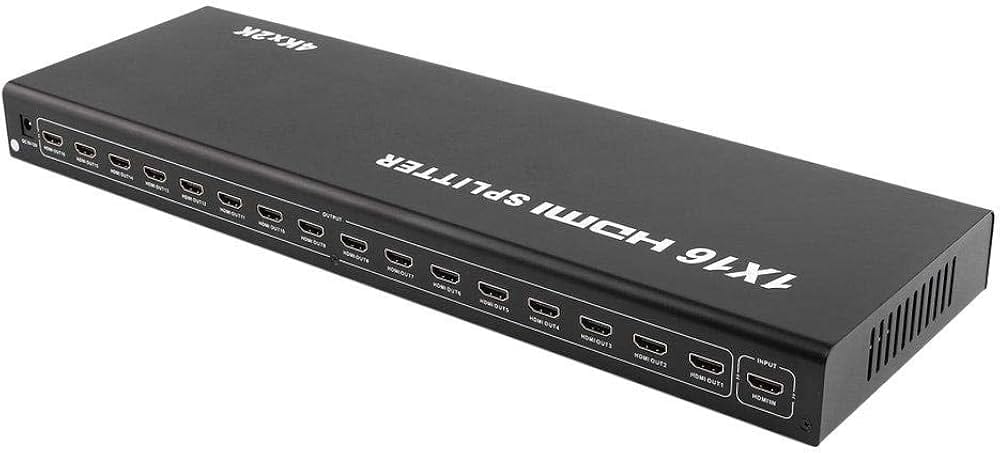

HDMI Splitter 16 port 2k 4k – Hdmi Splitter – Splitter

Detail: This high-performance HDMI splitter provides 1 HDMI into 16 HDMI outputs and supports 4K2K, Full 3D, 12-bit Deep color as well as High DefinitionLossless Audio. With its 3Gbps bandwidth and the additional features of the latest HDMI standards, you can be sure of great HDMI distribution.

It supports almost all HDMI-enabled equipment, such as DVD players, Amazon Fire TV, Apple TV, HD TV, HD Projector, satellite set-top boxes, and other HDMI devices. Bring great convenience to multimedia teaching, video conference, training, product display, and so on. Specifications:

Input port: 1 x HDMI Input Port
Output port: 16 x HDMI Output Ports
HDMI version: HDMI 1.4b
HDMI resolution: up to 3840*2160/30Hz
Support video format: 8/10/12 bit deep color
Support audio format: DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD
Max bandwidth: 320MHz
Max baud rate: 3.4Gbps
Input cable distance:(1080p resolution) ≤10m,(4K resolution)≤5m AWG26 HDMI standard cable
Output cable distance: (1080p resolution) ≤15m,(4K resolution)≤10m AWG26 HDMI standard cable
Max working current: 500mA
Power adapter format: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/2A
Operating Temperature Range: -15 to +55℃
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 18.11’’x5.90’’x1.57’’
Weight:1680g Operating and Connecting:
1. Connect 1 HDMI cable from HDMI source devices into HDMI Splitter input.
2. Connect 16 HDMI cables from each display (monitors or projectors) into the HDMI Splitter outputs.

Package includes:

1*1 x 16 Port HDMI Splitter
1*Power Adapter
1*User Manual
